MINIMOD 13-71 FULLY-AUTOMATIC FUSION SPLICING KIT

A000200-03 MINIMOD 13-71 FULLY-AUTOMATIC FUSION SPLICING KIT FOR BOEING BMS 13-71 FIBER OPTIC CABLES.

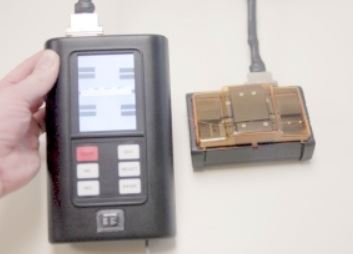

Menu-driven, micro-processor controlled miniature modular fusion splicer for low-loss splicing both single and multi-mode optical fibers. Specifications as per below:
• Fusion splicer measures only 2 x 3 x 5 inches, 23 cubic inches, 17 ounces.
• Automatic 3-axis PAS alignment and splicing of all silica fibers from 125 to 140 µm OD.
• Fiber/cable holders for BMS 13-71 Type 3 fiber cable
• Splice loss estimation, extrinsic, based on image processing.
• Fiber end angle measurement and gross defect detection.
• High strength fiber holders for convenient fiber preparation, automatic fiber positioning, and tension proof testing.
• Automatic correction of fiber overlap.
• Two simultaneous views of fibers at 80X.
• Tension proof test capability to 450 grams-force.
• High frequency AC fusing arc.
• Automatic altitude sensing and splice compensation.
• 2.5 m umbilical cable for independent location of splicer, controller.
• Electronic controller with LCD monitor and 6-button keypad.
• Formed high density polyethylene transit case
• Splice data memory: capacity to store data for up to 10,000 splices, including splice images.
• Motor-driven automatic fiber feed.
• AC adapter/charger
• AC power cord
• 12 VDC Li-ion battery pack and charger
