SPL-1634 B737 Jack Adapter (SYSTEM) - VSCF and IDG incl. jack 42000C

PN: SCA-C24002-78   -  Jack Adapter (SYSTEM)  - VSCF and IDG

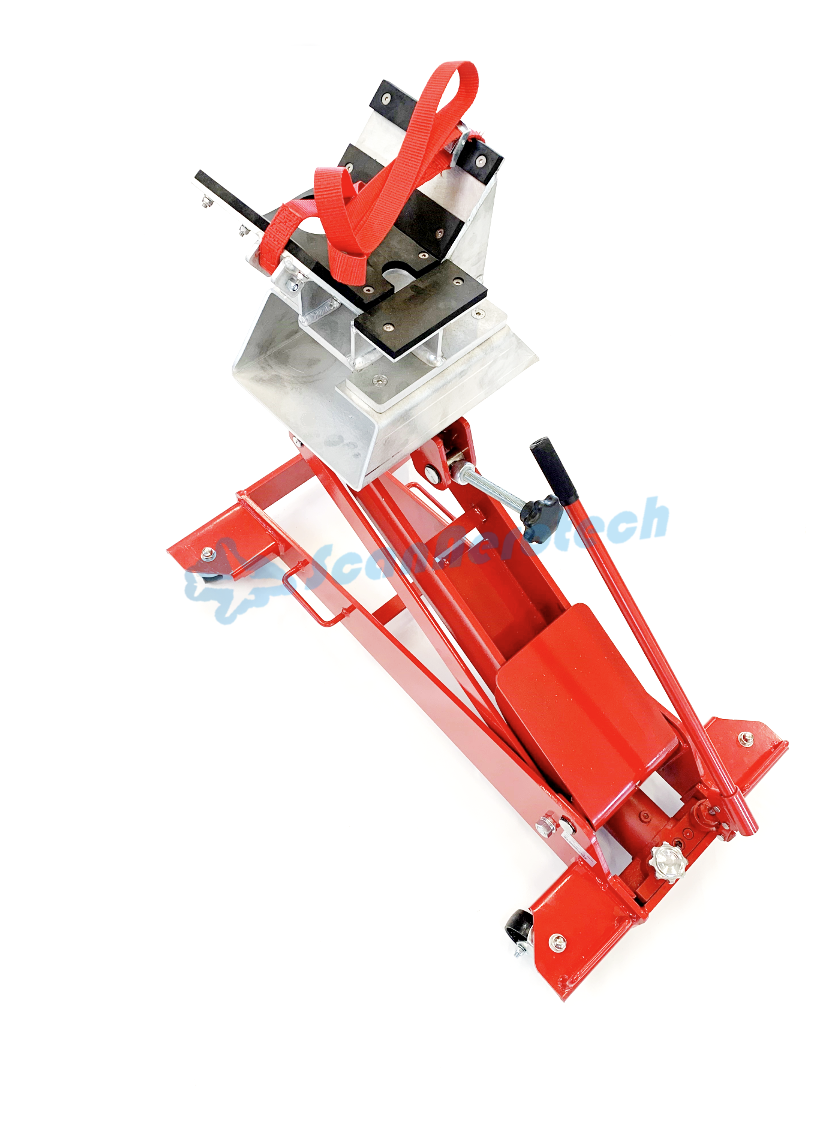

Jack Adapter/Craddle & matching jack (1 ton / 907 kg capacity) ready for immediate service.

ScanAerotech supplies a complete system for installing and uninstalling VSCF and IDG in accordance with Boeing AMM.

The jack has an adjustable head which can be titled forward, backward, and side to side for optimum alignment of transmission bolt pattern and pins.
Rugged steel wheels and four (4x) full swivel ball bearing casters allow easy movement and positioning of the transmission jack.
User friendly 360 degree rotating, pumping socket for maximum multi-directional operation.
The Transmission Jack is used to support VSCF and IDG Adaptor C24002-77, C24002-78 and can also be modified to fit B787 VSCF and IDG adaptor for B787.


The Adapter/Craddle is for Boeing 737-600, 700, 800, 900 and MAX.
Contact ScanAerotech for other engine types.

Alt. P/N: 4200000, TJ1000F, C24002-77, C24002-78, SPL-1634


Accessory: A49002-2
