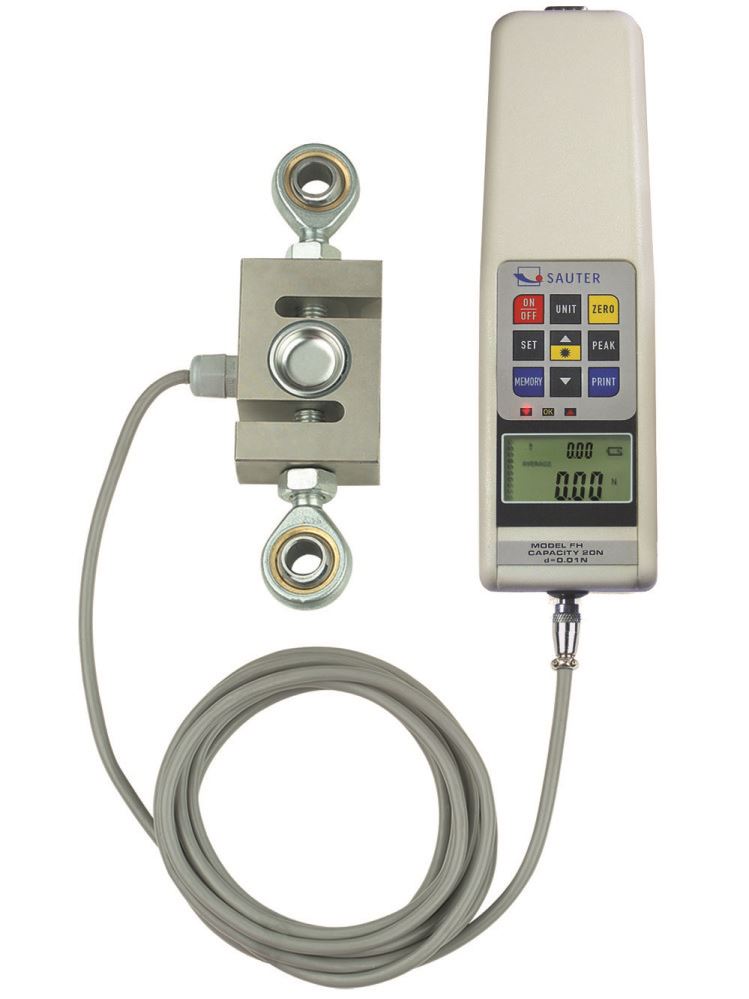

Sauter Force Gauge FH 50 , Incl. Calibration Certificate

Top of the range Universal Digital Force Gauge offers a whole host of features from Peak Hold to Statistical Analaysis, compatiable with our full range of test stands and can be supplied with PC based software for data collection and record keeping.

Real time or Peak Hold mode to observe transcient or capture peak loads, sample rate of 2000Hz with an accuracy of 0.5% of capacity.

Programmable Auto power off function settable between 1 and 60 seconds. Statistics function calculates the average results from up to ten stored single results (min, max & N).

Large LCD display with blue backlight and reversable diplay for easy reading in push applications. FH is supplied with standard RS232 output for connection to PC or printer. Programmable high and low setpoints for go/no go testing.

Optional extras include PC Windows based software, Thermo Printer and Digital control signal interface for machine control.

Unit is supplied with rechargeable batteries and charger, complete in a hard carrying case.

Accuracy: 1% of Max
