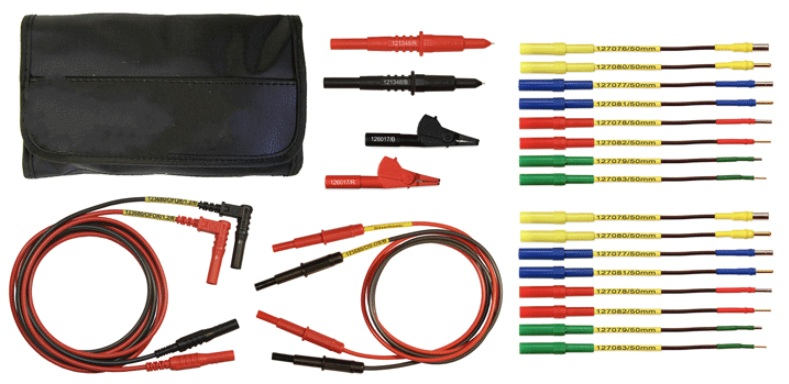

Avionic Test Leads NSN 6625-01-618-9784

Features: 123680/OF-OR Red and Black CE/UL/CSA Compliant
1.2 Double Insulated Silicone Cable, 250+ copper stranding for high flexibility Silicone Insulation protects from excessive heat and cold Inner Silicone skin is a contrasting colour which acts as a wear/damage indicator.
Rated IEC 1010 1000V CAT III/600V CAT IV 20 Amps
ALT. Part No: 905316 NSN 6625-01-618-9784 AGE-03334-401

4mm Socket to Connector Leads
2x 127076/50mm Aero Lead Pin Size 12 - 4mm Socket to Female Yellow
2x 127080/50mm Aero Lead Pin Size 12 - 4mm Socket to Male Yellow
2x 127077/50mm Aero Lead Pin Size 16 - 4mm Socket to Female Blue
2x 127081/50mm Aero Lead Pin Size 16 - 4mm Socket to Male Blue
2x 127078/50mm Aero Lead Pin Size 20 - 4mm Socket to Female Red
2x 127082/50mm Aero Lead Pin Size 20 - 4mm Socket to Male Red
2x 127079/50mm Aero Lead Pin Size 22 - 4mm Socket to Female Green
2x 127083/50mm Aero Lead Pin Size 22 - 4mm Socket to Male Green

126017 Red and Black CE/UL/CSA Compliant
Accepts all standard 4mm plugs Ideal for connecting to small conductors and test points
Jaw opening 7mm (.275”) Max
Rated IEC 1010 300V CAT II 10 Amps

121348 Red and Black CE/UL/CSA Compliant
Accepts all standard 4mm plugs
Lantern Fronted
Rated IEC 1010 1000V CAT III/600V CAT IV 20 Amps

123680/OS-OS Red and Black 0.9mtr Double Insulated Silicone Cable, 250+ copper stranding for high flexibility Silicone Insulation protects from excessive heat and cold Inner Silicone skin is a contrasting colour which acts as a wear/damage indicator.

119519
4 Pocket Storage Pouch
