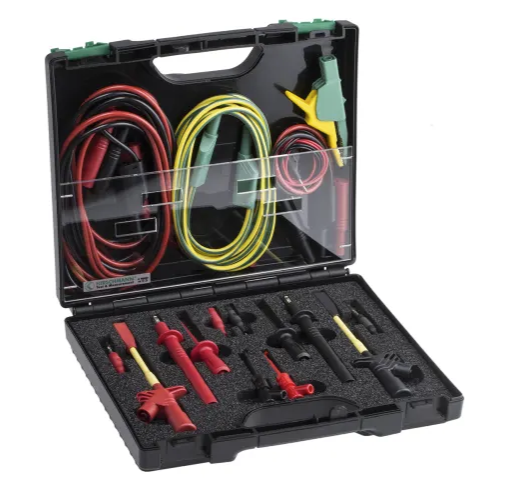

Test Lead Kit

Part No: 932792001 Test Lead Kit

Service Case Electro Installation for all tasks of industrial installation, services, utilities management, training and more.

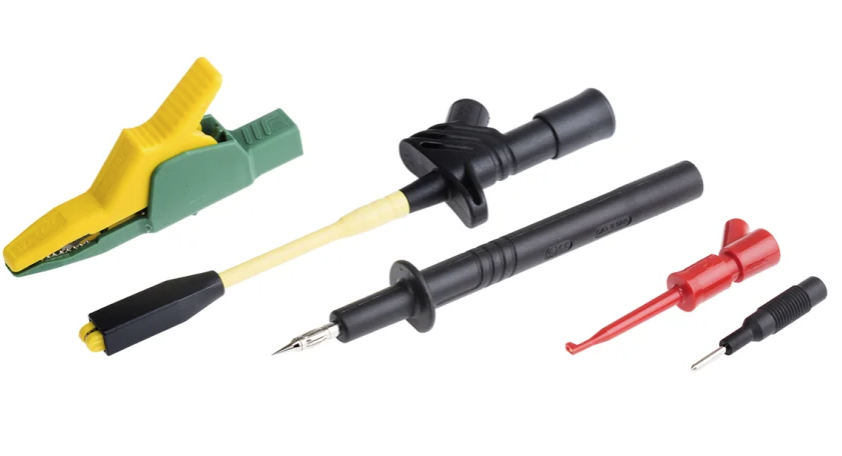

MVL 2/50 - molded measuring lead with stackable 2mm plugs on both sides

KLEPS 2 BU - miniature clamp-type test probes with spring-loaded 2mm connection socket

PRUEF 2600 - safety-test probe, shatter-proof insulated sleeve with slender stainless steel tip

PRUEF 2700 - safety-test probe with dual function - peak for piercing with spring-loaded 4mm connector pin and spring-loaded 4mm connection socket

KLEPS 2800 - safety-clamp-type test probe with wide opens gripping claws and 4mm connection socket

MZS 2 - molded plug adapter from unsprung 2mm plug on unsprung 4mm connection socket

MZS 4 - molded plug adapter from spring-loaded 4mm connector on spring-loaded 2mm connection socket

AK 2 B 2540 I - wide-opening, contact protected alligator clip, for bolt diameter up to 30mm, with connection socket for 4mm plug - MLS WS 25/2,5 - safety-measuring lead, Ø 4mm safety plugs at both ends with onward connection capability

MLS WS 200/2,5 - safety-measuring lead, Ø 4mm safety plugs at both ends with onward connection capability

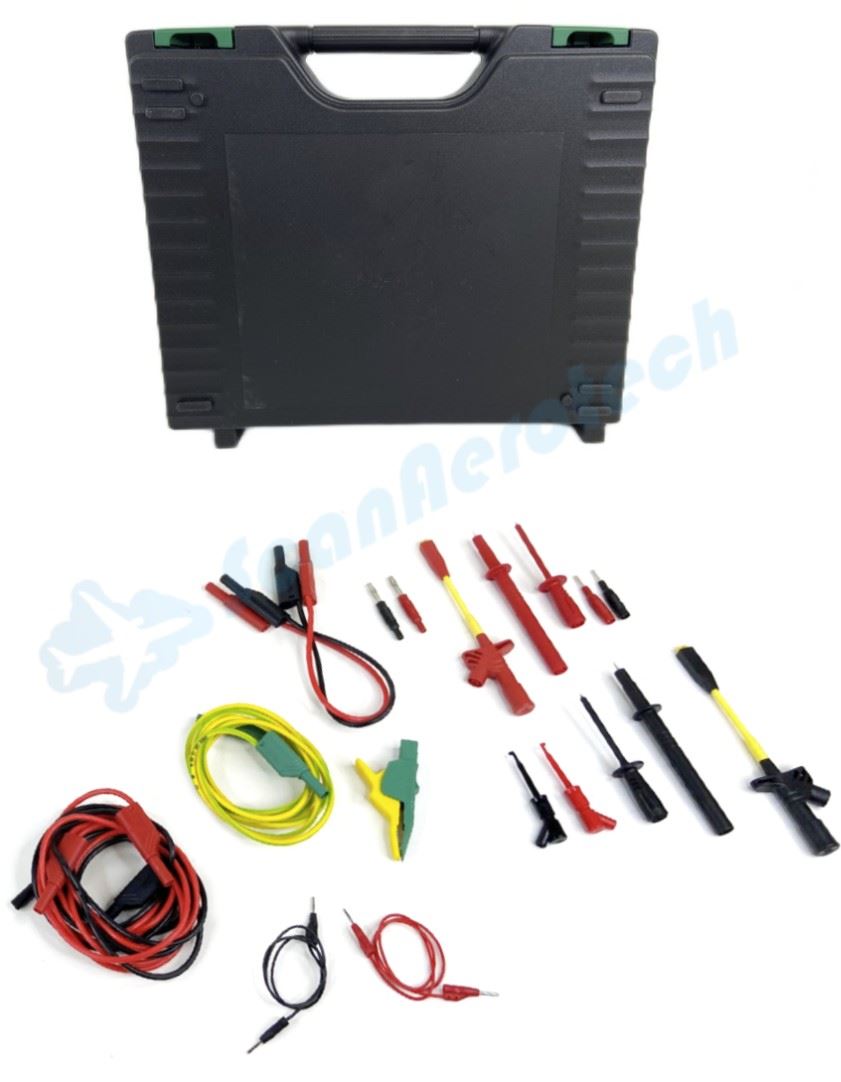

1x clamp-type test probe KLEPS 2 BU black (973 501-100)
1x clamp-type test probe KLEPS 2 BU red (973 501-101)
1x test probe PRUEF 2600 black (972 317-100)
1x test probe PRUEF 2600 red (972 317-101)
1x test probe PRUEF 2700 black (972 319-100)
1x test probe PRUEF 2700 red (972 319-101)
1x clamp-type test probe KLEPS 2800 black (972 308-100)
1x clamp-type test probe KLEPS 2800 red (972 308-101)
1x plug MZS 4 black (973 599-100)
1x plug MZS 4 red (973 599-101)
1x measuring lead MLS WS 25/2,5 black (934 086-100)
1x measuring lead MLS WS 25/2,5 red (934 086-101)
1x measuring lead MLS WS 200/2,5 black (934 089-100)
1x measuring lead MLS WS 200/2,5 red (934 089-101)
1x measuring lead MLS WS 200/2,5 yellow/green (934 089-188)
1x crocodile clip AK 2 B 2540 I yellow/green (972 405-188)
1x measuring lead MVL 2/50 black (973 595-100)
1x measuring lead MVL 2/50 red (973 595-101)
1x plug MZS 2 black (973 600-100) 1x plug MZS 2 red (973 600-101)
